Why 914 owners convert from points to electronic ignition, and what a plug-and-play sequential fuel and ignition system actually replaces. I build a nearly plug-and-play fully sequential fuel and ignition system for 1969-76 914s, built around the MS3 PRO Mini — here's what the conversion is and isn't.
What "points era" means on a 914
Most 914s still run the way they left the factory: a points distributor for ignition and carburetors for fuel. Points are moving parts — they wear, the condenser is a consumable, and once the system ages the idle, driveability, and fueling all suffer. Carburetors want to be jetted and bled, and the base timing is set and left alone.
The fix owners reach for is electronic sequential ignition with fuel injection: no points to wear out or adjust, fuel and timing controlled by an ECU, and the whole map tunable when the car changes — different exhaust, different injectors, different altitude.
What the kit replaces

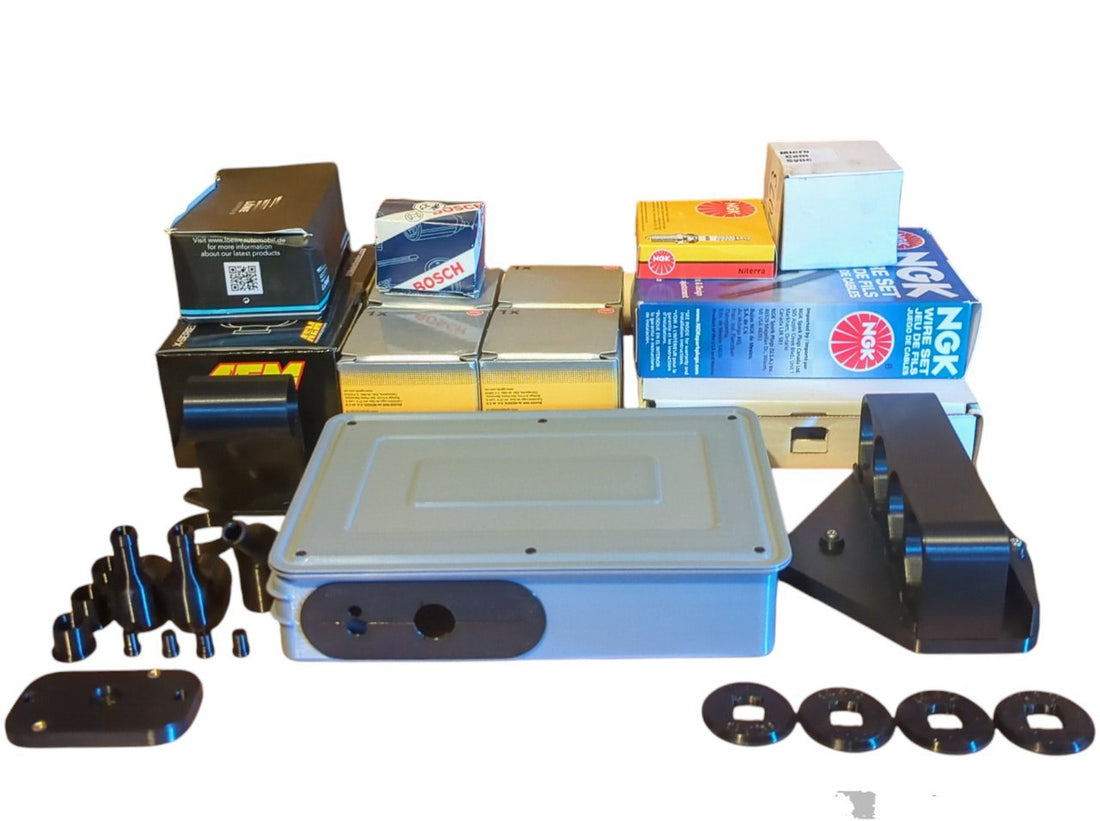

The kit is a fully sequential fuel and ignition system for the 1969-76 914, built around the MS3 PRO Mini. "Nearly plug and play" is doing real work in that name, so here's what it means:
- The wiring harness takes the place of the fuel injection harness — there is no modification or splicing to the car's factory wiring.
- The ECU mounts in the factory location with the factory bracket.
- Coils mount where the factory coil mounts. The idle valve mounts where the factory auxiliary air valve mounts.
- The kit uses the factory screws and hold-downs. No new holes, no permanent modification — it's fully reversible.
- The ECU box handles both factory low-impedance injectors and modern high-impedance injectors by swapping 2 plugs. It ships set up for the factory low-impedance injectors.
Since the ECU and injectors take over fueling and ignition, the carburetors and the points distributor are out of the loop. That's the whole point of the conversion.
The two car mods you still do
Two things require work on the car itself, and I'd rather list them up front than bury them:
- The tachometer.
- A weld-in wideband O2 sensor on the exhaust.
Everything else in the kit is plug and play.
Tuning from a laptop
By default the kit comes with a cable connecting the ECU to a laptop for diagnostics and tuning. It works well if you just want to tune the car and forget about it.
There's a Wi-Fi + Bluetooth option that adds a module to the ECU, so you can connect from a laptop, tablet, screen, or phone without a cable hanging across the car — useful for tuning, digital dashes, gauges, or quick diagnosis and monitoring.
Every connector on the harness is labelled, and the instruction manual walks through setting sensor distances and base timing, with photos.
Pricing
The kit is quoted per order — pricing is provided on request, because the injector and wireless options change what you're getting. Request a quote on the product page and I'll answer it directly.
The rest of the 914 ecosystem
The kit isn't the whole story — the Porsche 914 collection also has the coil adaptor, plug wires with custom grommets, the TPS adaptor, the AAR-to-IAC adaptor, and the engine tin fan duct caps. It all mounts at factory locations, and it all supports the conversion.
